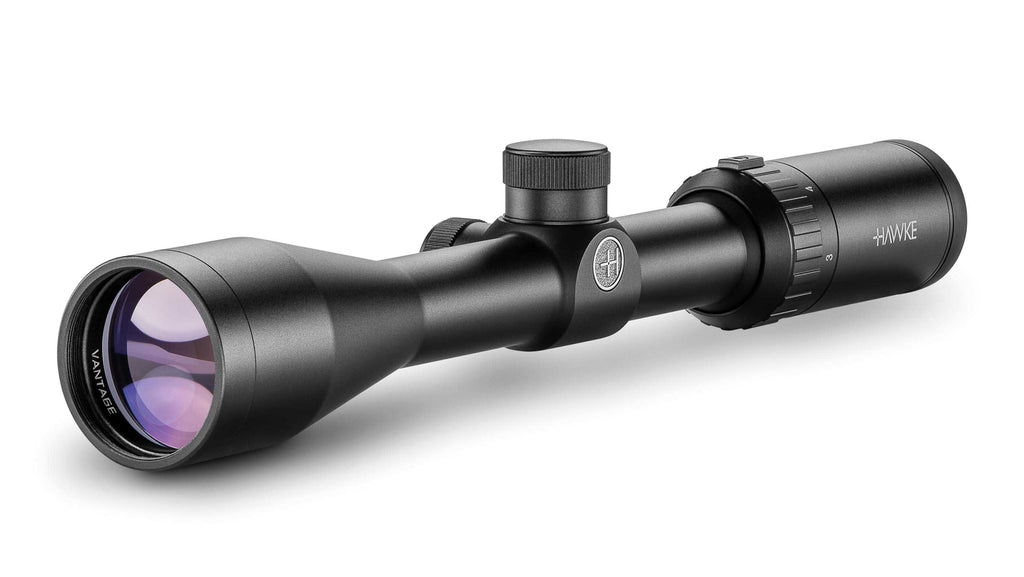

A variant on the classic L4 reticle, the 30/30 Duplex offers 30″ spacing from post to post at 100yds, when on 4x magnification
| |
| Optical System | System H2 |
| Scope Tube | 1 inch |
| Magnification | 3-9x |
| Objective Lens | 40mm |
| Reticle | 30/30 Duplex |
| Illumination | N/A |
| Parallax |
Fixed
|
| Focal Plane |
SFP (Second Focal Plane)
|
| Lens Coating |
Fully Multi-Coated - 11 Layers
|
| Field of View |
39 - 12.7ft @100yds
|
13 - 4.2m @100m
|
| Field of View (°) |
7.4 - 2.4
|
| Eye Relief | 3.5in | 90mm |
| PX/Focus | 100yds | 91m |
| Exit Pupil |
0.52 - 0.17″
|
13.3 - 4.4mm
|
| Turret Type | Capped |
| Turret Caps | Yes |
| Click Value | 1⁄ 4 MOA |
| Elevation Turret Clicks (max) |
100 MOA
|
| Windage Turret Clicks (max) |
100 MOA
|
|
| Length |
12.4in
|
315mm
|
| Weight |
14.2oz
|
402g
|
| THIS SCOPE IS SUPPLIED WITH THE FOLLOWING |
 |
Instruction Manual |
|
|
|
Lens Cover |
Lens Cloth |
|
|
|
|||
|
|
|
|
